Quadra Wash 2

Thorough and durable plate washing station

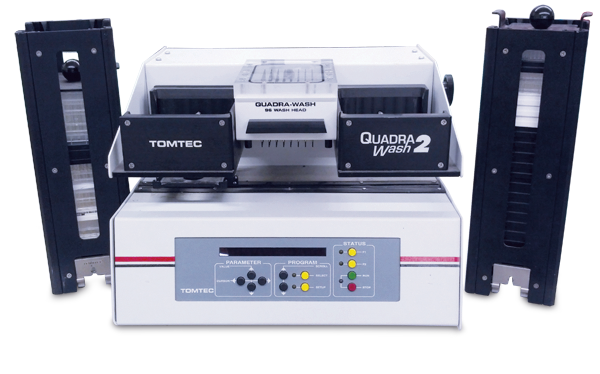

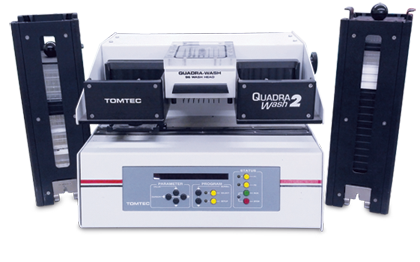

The Quadra Wash 2 workstation is a small footprint, self contained, automated microtiter plate washing station.  The unit supports washing cycles with two different concentrations of buffered solutions, such as Phosphate Buffered Saline (PBS) and/or water. Dispense/aspirate volumes and rates are set with simple pressure/time adjustments allowing the user to program repeatable fill/dispense volumes at known rates with integrated volume check function, which provides feed-back for quality control. Two separate inputs are provided for buffered solution, used in the wash cycle. The solutions are contained in a 10 Liter pressurized (2 - 5psi) PVC bottle. The effluent from the wash cycle can be aspirated to, and retained in, an Autotrap.  It can also be emptied to a waste disposal system by pressurizing the container from the Quadra Wash 2 control panel.


Contact us at info@tomtec.com, or send us a Product Information Request

For questions regarding service, contact our Support


Financing available


Quadra Wash 2 Product Brief

The Quadra Wash 2


The Quadra Wash 2 is available with two separate heads for 96 or 384-well assays. Both heads are based on a unique concentric wash/aspirate needle design which can be set up to a depth of 0.7 inches. The assay sits on a platform that can be programmed to move in an x/y pattern during an aspirate/dispense cycle to maximize well-bottom wash coverage. To ensure uninterrupted use, the modular design allows the user to detach and wash the polypropylene/stainless steel head between runs.

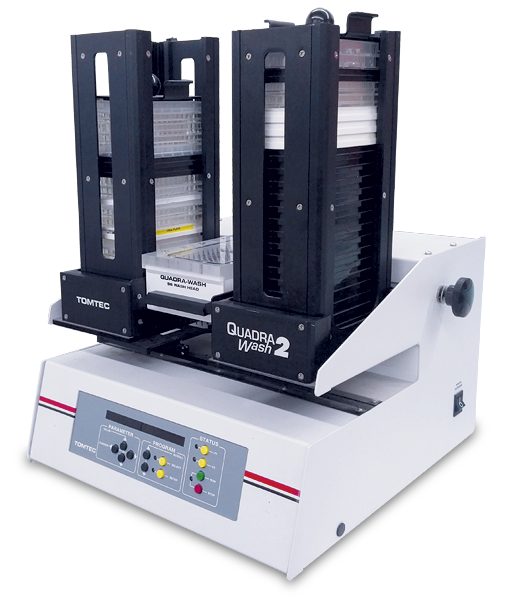

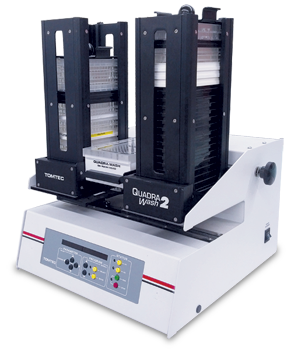

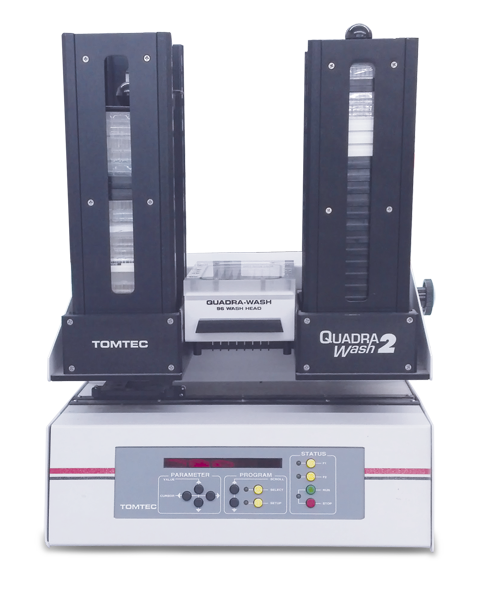

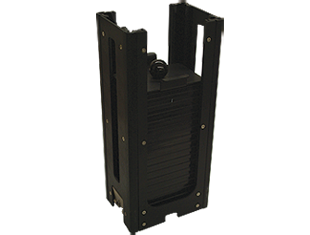

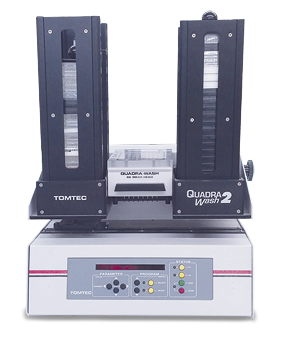

An optional microplate stacker is available to enable walk-away automation. The stacker will support up to 25 standard assays per run. The Quadra4 liquid handling workstation, Quadra Wash 2 and Autoseal together provide all the utility needed to automate an ELISA workflow for up to 25 plates per run.

The instrument is programmed via a simple integrated user interface. The user can program multiple “named” wash cycles of dispense, soak and aspirate time-pressure intervals - no external PC is needed.  Each wash cycle can be programmed, saved and recalled from memory supporting walk-away automation.

Biochemical assays such as Sandwich enzyme-linked immunosorbent assay (ELISA)


Cell-based assays where weakly adherent cells are washed from an assay


Preparation of assays for Fluorescent Imaging Plate Reader (FLIPR) technology to measure Ca2+ flux in cells.


Preparation of assays for multimode reader for Luminescence, Fluorescence, and Absorbance.


Assay washer to remove adhered polypeptides
